Schneider thermal overload relays 2.5...4 A class 10A LRD08

Name: Schneider thermal overload relays 254 A class 10A LRD08
Brand: Schneider
Price: 1 USD

Quality Schneider thermal overload relays 2.5...4 A class 10A LRD08 for sale

Brand Name : Schneider

Place of Origin : China

MOQ : 1 unit

Price : Price negotiable

Payment Terms : TT

Supply Ability : goods in stock

Delivery Time : 7-10 days

Applicable Industries : Hotels, Building Material Shops, Machinery Repair Shops

Showroom Location : Egypt, Canada, Turkey, United States, Italy, Germany, Viet N

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Condition : New

Warranty : 1 Year

Advantages : fast and efficient

Contact Now

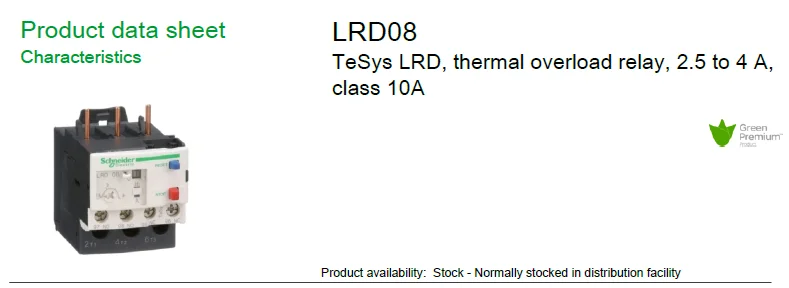

Schneider thermal overload relays LRD08

2.5...4 A, class 10A

Product Description

>> What are the main features of Schneider thermal overload relays

LRD08?

Main
Range	TeSys
Product Name	TeSys LRD
Product or component type	Non differential thermal overload relay
Device short name	LRD
Relay application	Motor protection
Product compatibility	LC1D25 LC1D09 LC1D38 LC1D32 LC1D12 LC1D18
Network type	DC AC
Thermal protection adjustment range	2.5...4 A
[Ui] rated insulation voltage	600 V power circuit conforming to CSA 600 V power circuit conforming to UL 690 V power circuit conforming to IEC 60947-4-1
Network frequency	0...400 Hz
Mounting support	Plate with specific accessories Rail with specific accessories Under contactor
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
[Ith] conventional free air thermal current	5 A for signalling circuit
Permissible current	3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit
[Ue] rated operational voltage	690 V AC 0...400 Hz
[Uimp] rated impulse withstand voltage	6 kV
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0
Control type	Red push-button: stop Blue push-button: reset
Temperature compensation	-20…60 °C
Connections - terminals	Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² flexible without cable end Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² flexible with cable end Control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² solid without cable end Power circuit : screw clamp terminals 1 cable(s) 1.5...10 mm² flexible without cable end Power circuit : screw clamp terminals 1 cable(s) 1...4 mm² flexible with cable end Power circuit : screw clamp terminals 1 cable(s) 1...6 mm² solid without cable end
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals

>> What condition of the environment could Schneider thermal

overload relays LRD08 be used?

Environment
Protective treatment	TH conforming to IEC 60068
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C without derating conforming to IEC 60947-4-1
Ambient air temperature for storage	-60…70 °C
Flame retardance	V1 conforming to UL 94
Mechanical robustness	Vibrations: 6 Gn conforming to IEC 60068-2-6 Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7
Dielectric strength	6 kV at 50 Hz conforming to IEC 60255-5
Standards	UL 508 EN 60947-5-1 EN 60947-4-1 IEC 60947-4-1 ATEX D 94/9/CE IEC 60947-5-1 CSA C22.2 No 14
Product certifications	BV RINA LROS (Lloyds register of shipping) CCC CSA ATEX INERIS GL UL GOST DNV

>> What is the dimension of Schneider thermal overload relayes

LRD08?

Dimension
Width	45 mm
Depth	70 mm
Net weight	0.124 kg
